JUNCTION BOXES

Send Inquiry

Product Code : AE-24

Brand Name : ACME

Product Description

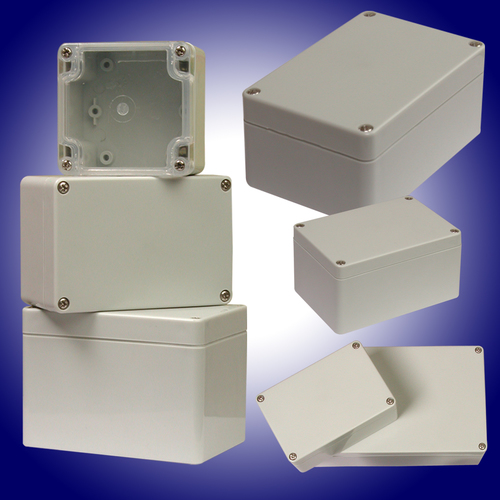

ENCLOSURES / JUNCTION BOXES

With the support of our highly experienced and skilled workforce, we are renowned as one of the well equipped suppliers and exporters of Junction Boxes. Our entire assortment is manufactured from high quality raw materials and advanced technology. Highly durable, water resistant and durable, these boxes are used to store and protect excess fiber optic cable. These Junction Boxes are available in standard sizes, dimensions and shapes and that too at very reasonable prices.

Specifications

Technical Specification :

Protection Spec - IP - 65acc DIN EN 60529 / DIN 40050
Material - ABS / Polycarbonate ( UV Resistance )
Colour - Light Gray ( RAL - 7035 ) ( Special Colour on request )
Installation temp - 5 deg C upto +70 deg C
Temperature Resistance - Max. 100 deg . C acc DIN EN 60695 10-2
Rubber Seal - Foamed Neoprene Seal

ABS & Polycarbonate Enclosure / Junction Box ABS-AS/Polycarbonate- APC
VS-885AS	80x82x55 mm	VS-121765AS	125X170X65 mm
VS-888AS	80x82x85 mm	VS-121785AS	125x170x85 mm
VS-815AS	80x120x55 mm	VS-151575AS	150x150x75 mm
VS-818AS	80x120x85 mm	VS-151510AS	150x150x100 mm
VS-101060AS	100x100x60 mm	VS-1259AS	160x250x90 mm
VS-101080AS	100x100x80 mm	VS-12515AS	160x250x115 mm
VS-117AS	122x125x75 mm	VS-253085AS	250x300x85 mm
VS-121470AS	120x140x70 mm	VS-253011AS	250x300x110 mm
VS-121410AS	120x140x100 mm	VS-253015AS	250x300x150 mm
VA-127AS	120x200x75 mm	VS-253017AS	250x300x170 mm
VA-129AS	120x200x90 mm

Aluminium Enclosures / Junction Boxes
VS-118AL	100x160x80mm
VS-119AL	160x160x90mm
VS-221AL	230x200x110mm
VS-139AL	160x360x90mm
VS-1229AL	120x220x90mm
VS-1269AL	160x260x90mm
